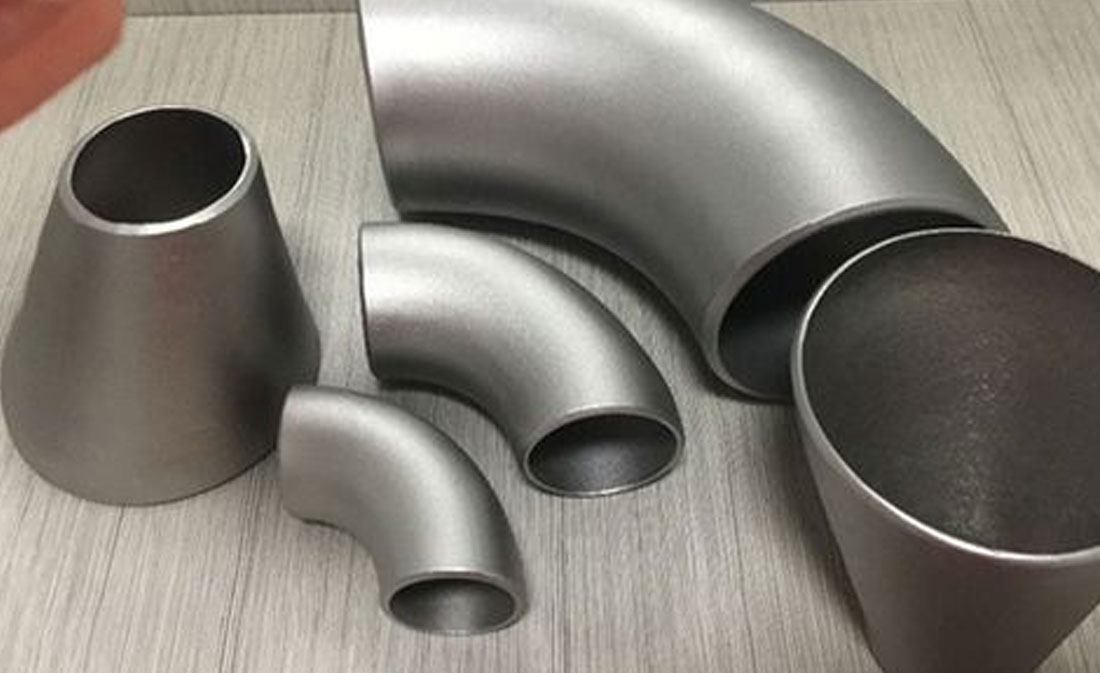

Alloy Steel WP1 Buttweld Fittings
| Alloy Steel WP5 Pipe Fittings Specifications | ||
| Specifications | : | ASTM A234 / ASME SA234 |
| Size | : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Standards |
: | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Type | : | Seamless / Welded / Fabricated |
Types of Alloy Steel WP1 Buttweld Fittings
| Alloy Steel WP5 45 Degree Elbow | Alloy Steel WP5 45 Degree Elbow Alloy Steel WP5 Buttweld 45 Deg. Elbow WP5 Alloy Steel 45 Degree Elbow Chrome Moly WP5 45 Degree Elbow Alloy Steel WP5 45 Degree Elbow ASME A234 Alloy Steel WP5 90 Degree Elbow |
| Alloy Steel WP5 Pipe Fittings | Alloy Steel WP5 Pipe Fittings Chrome Moly WP5 Buttweld Fitting WP5 Alloy Steel Pipe Fitting Alloy Steel WP5 Buttweld Fitting Alloy Steel WP5 Pipe Fittings ASTM A234 Alloy Steel WP5 45 Buttweld Fitting |
| Alloy Steel WP5 Eccentric Reducer | Alloy Steel WP5 Eccentric Reducer WP5 Alloy Steel Eccentric Reducer Chrome Moly Eccentric Reducer Alloy Steel WP5 Eccentric Reducer Alloy Steel WP5 Eccentric Reducer ASTM A234 Alloy Steel WP5 Eccentric Reducer |
| Alloy Steel WP5 Concentric Reducer | Alloy Steel WP5 Concentric Reducer WP5 Alloy Concentric Reducer Chrome Moly WP5 Concentric Reducer Alloy Steel WP5 Concentric Reducer Alloy Steel WP5 Concentric Reducer ANSI B16.9 Alloy Steel WP5 Concentric Reducer |
Types of Alloy Steel WP1 Buttweld Fittings
Alloy Steel WP5 Pipe Fittings Chemical Composition
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
Alloy Steel WP5 Buttweld Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |
ASTM A234 WP5 Pipe Fittings Size Chart
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
